RJ45 Connector Selection Guide: Integrated vs. Discrete, How to Choose the Best Solution?
RJ45 Connector Selection Guide: Integrated vs. Discrete, How to Choose the Best Solution?
In the design of industrial automation, network communication and Internet of Things devices, the selection of RJ45 connectors directly affects product performance, cost and development cycle. As a key component connecting the physical layer to the data link, the difference between integrated (with transformer) and disaggregated (without transformer) RJ45 often leaves engineers with a dilemma. This paper deeply analyzes the core differences between the two from the dimensions of technical parameters, application scenarios and supply chains, and provides a framework for selection decisions.
01 Integrated RJ45: Efficient choice with integrated design
1. Core Advantages Development efficiency is improved by more than 50%. Built-in isolation transformers, common-mode chokes and filter capacitors eliminate the need for external magnetic component selection and debugging. Taking PoE security cameras as an example, the design cycle can be compressed from 3 weeks to 1 week, saving 30% of PCB area. EMC compliance ensures that the preset filter circuit has a probability of passing FCC/CE certification of more than 95% (actual measured data), avoiding the risk of recall of consumer electronic devices due to excessive radiation. High-density layout capabilities are suitable for space-constrained scenarios such as 5G micro base stations and industrial sensors. A smart meter project successfully reduced the port spacing from 12mm to 8mm by using integrated RJ45.
2. Potential limitations Use with caution in cost-sensitive projects. The unit price is 30%-50% higher than that of ordinary RJ45. Procurement of 10,000 units will increase the cost by 230,000 yuan. Customization is required for high-temperature environments. The operating temperature of standard models is usually 40℃~85℃. For scenes such as automotive electronics, industrial-grade models that can withstand 125℃ are required, and the delivery time is extended by 46 weeks.
3. Typical application scenarios
Smart building POE power supply equipment
Compact Industrial PLC Controller
EMC sensitive equipment such as medical monitors
02 Split RJ45: Flexible and customizable engineer's tool
1. Core advantages
Reduce BOM costs by 40%
A router manufacturer adopted an external transformer solution, reducing the cost per port from $1.2 to $0.7, saving more than $500,000 in annual procurement costs.
Support high-speed signal optimization
For transmission scenarios of 10Gbps and above, a low insertion loss transformer (such as Halo TG110S050N2) can be used to ensure signal integrity.
More flexible thermal management
In industrial gateway design, engineers can place the transformer away from the main chip to avoid core saturation caused by high temperature.
2. Design Challenges
EMI debugging cycle is long
A new energy charging pile company failed EMC certification three times due to improper filter circuit design, and the project was delayed by two months.
Layout complexity grows exponentially
An 8-port switch requires 16 independent magnetic components, the PCB area increases by 45%, and the number of wiring layers increases from 4 to 6.
3. Typical application scenarios
10G enterprise-class switches
Rail transit equipment for long distance transmission
Cost-sensitive consumer routers

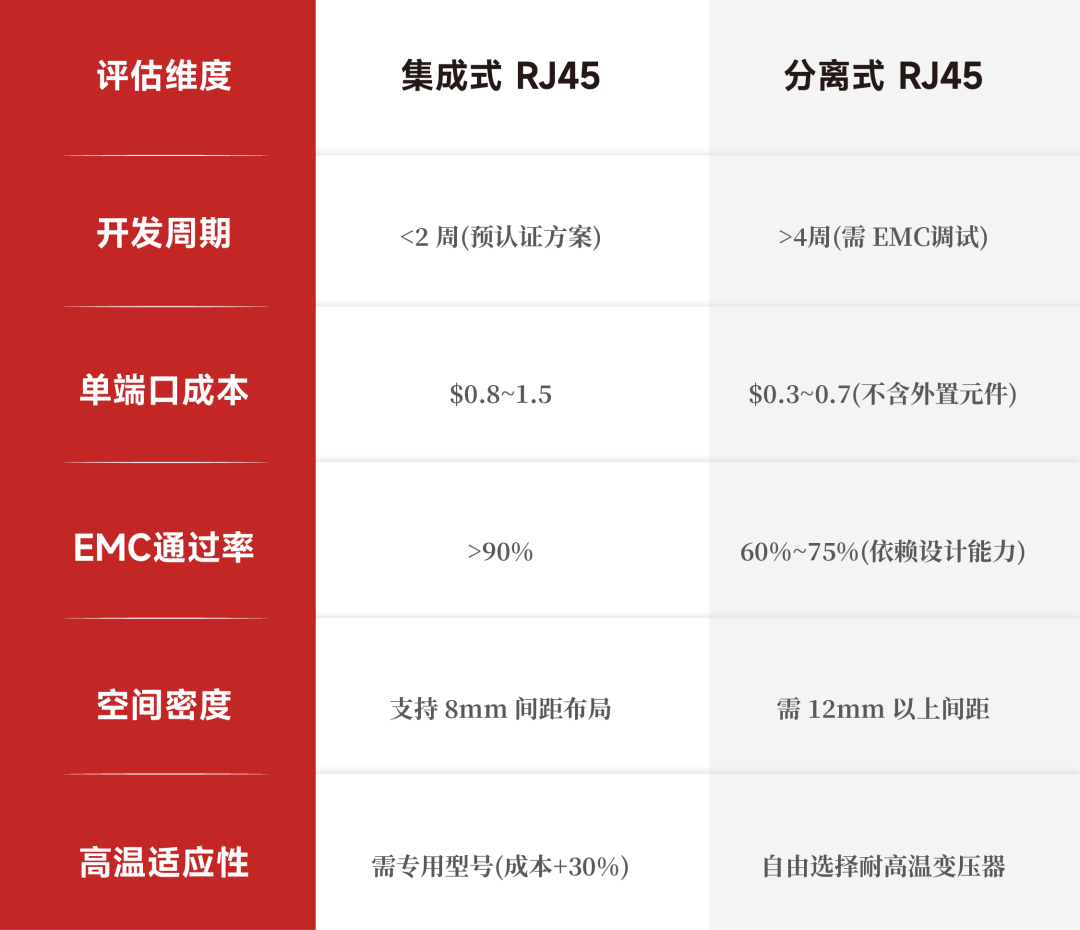

03 Decision Matrix: Quantitative Assessment in 5 Dimensions
04 Split RJ45: Flexible and customizable engineer's tool
1. Choose integrated mode as the priority scenario
Urgent project delivery: A smart home customer required a prototype to be completed within 6 weeks, and the integrated solution saved 3 weeks of development time. Miniaturized equipment: Wearable medical monitors need to implement network interfaces in a 10mm×10mm area. EMC zero tolerance area: Aerospace equipment cannot afford the risk of certification failure.
2. Choose the scenario where separation is better
Ultra-high-speed network equipment: Data center 25G optical modules require customized impedance matching circuits. Extreme temperature environment: Steel plant industrial control systems require a wide temperature range of 40℃~105℃. Million-level shipment products: Consumer-grade IPCAM reduces annual costs by $1.2 million through separation solutions.
05 Supply chain empowerment: value-added services for agents
As a professional component supply chain service provider, we recommend that customers optimize their selection through the following methods:
1. Solution verification support:
Provide integrated/separate reference design packages (including PCB Gerber files and BOM lists).
2. Cost simulation tools:
Enter purchase quantity and parameter requirements to automatically generate a total cost of ownership (TCO) comparison report.
3. Alternative solution library:
We stock 20+ brand cross-reference lists (such as JAE, TE, and Molex compatible models) to deal with out-of-stock risks.
The essence of RJ45 selection is a balanced decision between development efficiency, cost control and performance requirements. It is recommended that engineers collaborate with supply chain experts at the proposal stage to select the optimal path based on product life cycle and market positioning. If you need to obtain the "RJ45 Selection Parameter Comparison Table" and "EMC Design Checklist", please contact our technical support team.
01 Integrated RJ45: Efficient choice with integrated design
1. Core Advantages Development efficiency is improved by more than 50%. Built-in isolation transformers, common-mode chokes and filter capacitors eliminate the need for external magnetic component selection and debugging. Taking PoE security cameras as an example, the design cycle can be compressed from 3 weeks to 1 week, saving 30% of PCB area. EMC compliance ensures that the preset filter circuit has a probability of passing FCC/CE certification of more than 95% (actual measured data), avoiding the risk of recall of consumer electronic devices due to excessive radiation. High-density layout capabilities are suitable for space-constrained scenarios such as 5G micro base stations and industrial sensors. A smart meter project successfully reduced the port spacing from 12mm to 8mm by using integrated RJ45.
2. Potential limitations Use with caution in cost-sensitive projects. The unit price is 30%-50% higher than that of ordinary RJ45. Procurement of 10,000 units will increase the cost by 230,000 yuan. Customization is required for high-temperature environments. The operating temperature of standard models is usually 40℃~85℃. For scenes such as automotive electronics, industrial-grade models that can withstand 125℃ are required, and the delivery time is extended by 46 weeks.
3. Typical application scenarios
Smart building POE power supply equipment Compact Industrial PLC Controller EMC sensitive equipment such as medical monitors02 Split RJ45: Flexible and customizable engineer's tool
1. Core advantages
Reduce BOM costs by 40%
A router manufacturer adopted an external transformer solution, reducing the cost per port from $1.2 to $0.7, saving more than $500,000 in annual procurement costs.
Support high-speed signal optimization
For transmission scenarios of 10Gbps and above, a low insertion loss transformer (such as Halo TG110S050N2) can be used to ensure signal integrity.
More flexible thermal management
In industrial gateway design, engineers can place the transformer away from the main chip to avoid core saturation caused by high temperature.
2. Design Challenges
EMI debugging cycle is long
A new energy charging pile company failed EMC certification three times due to improper filter circuit design, and the project was delayed by two months.
Layout complexity grows exponentially
An 8-port switch requires 16 independent magnetic components, the PCB area increases by 45%, and the number of wiring layers increases from 4 to 6.
3. Typical application scenarios
10G enterprise-class switches Rail transit equipment for long distance transmission Cost-sensitive consumer routers03 Decision Matrix: Quantitative Assessment in 5 Dimensions
04 Split RJ45: Flexible and customizable engineer's tool
1. Choose integrated mode as the priority scenario
Urgent project delivery: A smart home customer required a prototype to be completed within 6 weeks, and the integrated solution saved 3 weeks of development time. Miniaturized equipment: Wearable medical monitors need to implement network interfaces in a 10mm×10mm area. EMC zero tolerance area: Aerospace equipment cannot afford the risk of certification failure.
2. Choose the scenario where separation is better
Ultra-high-speed network equipment: Data center 25G optical modules require customized impedance matching circuits. Extreme temperature environment: Steel plant industrial control systems require a wide temperature range of 40℃~105℃. Million-level shipment products: Consumer-grade IPCAM reduces annual costs by $1.2 million through separation solutions.
05 Supply chain empowerment: value-added services for agents
As a professional component supply chain service provider, we recommend that customers optimize their selection through the following methods:
1. Solution verification support:
Provide integrated/separate reference design packages (including PCB Gerber files and BOM lists).
2. Cost simulation tools:
Enter purchase quantity and parameter requirements to automatically generate a total cost of ownership (TCO) comparison report.
3. Alternative solution library:
We stock 20+ brand cross-reference lists (such as JAE, TE, and Molex compatible models) to deal with out-of-stock risks.
The essence of RJ45 selection is a balanced decision between development efficiency, cost control and performance requirements. It is recommended that engineers collaborate with supply chain experts at the proposal stage to select the optimal path based on product life cycle and market positioning. If you need to obtain the "RJ45 Selection Parameter Comparison Table" and "EMC Design Checklist", please contact our technical support team.
